building designing price supermarket cool food meat PU modular chiller Cold Storage Room for potato

Λεπτομέρειες:

Τόπος καταγωγής:	Jiangsu, Κίνα
Μάρκα:	Yixing ICS
Πιστοποίηση:	CE ISO SGS

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	1 σύνολο/σύνολα
Τιμή:	$3,000.00 - $4,000.00 / Set
Δυνατότητα προσφοράς:	50 σύνολο/σύνολα ανά τέταρτο

Επικοινωνία

Όλα τα Προϊόντα

Μηχανή κατασκευαστών πάγου νιφάδων (75)

Μηχανή κατασκευαστών κολόνων πάγου (63)

μηχανή κατασκευαστών σωλήνων πάγου (13)

ψυκτική μηχανή πηλού (18)

Τεχνητή μηχανή χιονοπτώσεων (15)

Εξατμιστικό ψυγείο συμπυκνωτών (11)

Πιό δροσερές μονάδες ψύξης (12)

Υπόλοιπος κόσμος ψύξης αργιλίου (5)

Η ηλιακή ενέργεια συσκεύασε το κρύο δωμάτιο (11)

Μονάδες ψύξης κρύας αποθήκευσης (2)

Λεπτομερής Περιγραφή Προϊόντος

Όρος:	Νέος	Θερμοκρασία:	-45~+15
Τάση:	220/380V που προσαρμόζεται	Δύναμη:	3,1 KW
Διάσταση (LWH):	διάσταση κρύων δωματίων	Βάρος:	Εξαρτάται
λειτουργίες:	Αποθήκευση παγωμένων τροφίμων/δωμάτιο ψυκτήρων	ΕΜΠΟΡΙΚΟ ΣΉΜΑ ΣΥΜΠΙΕΣΤΩΝ:	Γερμανικό Bitzer
Τύπος πορτών:	Ολίσθηση/ταλάντευση/επιστροφή/αρθρωμένη πόρτα	Υλικό:	Ανοξείδωτος/χάλυβας χρώματος
Σύστημα ελέγχου:	Πλήρως αυτόματο σύστημα ελέγχου	Πάχος του χάλυβα χρώματος:	0.426/0.5/0.6/0.8mm
Πάχος της επιτροπής:	50mm 75mm 100mm 120mm 150mm	Υλικό μόνωσης:	Επιτροπή μόνωσης σάντουιτς πολυουρεθάνιου
Πυκνότητα:	40-45kg/m3	Χαρακτήρας:	Φιλικός προς το περιβάλλον/εξοικονόμηση ενέργειας
Υπηρεσία μεταπωλήσεων παρεχόμενη:	Ελεύθερα ανταλλακτικά, εγκατάσταση τομέων, που αναθέτουν και που εκπαιδεύουν, συντήρηση τομέων και υ	Εξουσιοδότηση:	1 έτος μετά από την παράδοση

Product Description

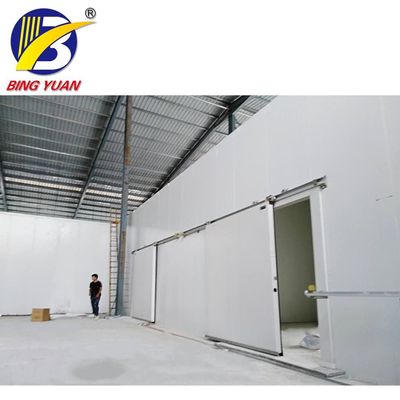

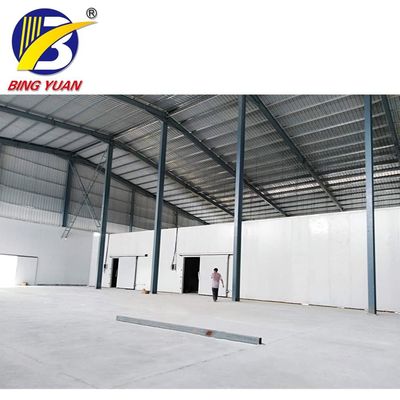

Yixing ICS Cold Room

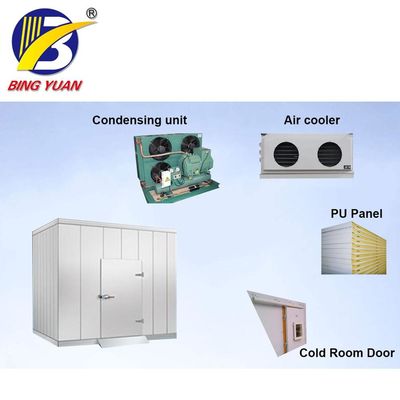

Choice in every part of our cold room:

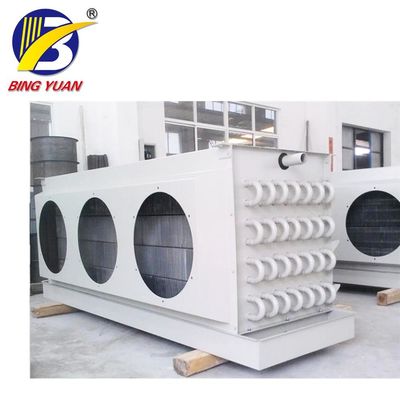

1. Evaporator is divided into aluminum alloy pipe row and cold air blower.

2. Insulation layer thickness ranges from 50~220 mm, it also depends on the temperature of the cold room.

3. Material of our cold room plate: stainless steel/color steel/galvanized steel (inside or outside).

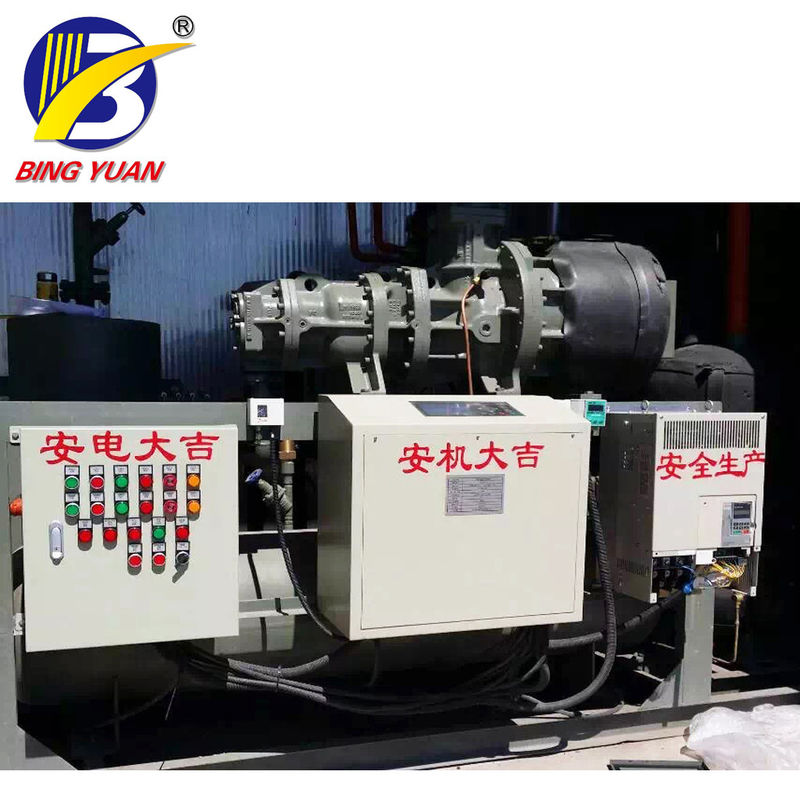

4. Brand of compressor: Bitzer/Bock/Fusheng/Hanzhong/Danfoss/Copeland etc.

We can customize the cold room totally as your demands.

Features and advantages

1. Concavo convex structure
Panels are joined together by means of tongue and groove and locked together by cam- lock on each side of the panel to ensure air tight joints. There's no need of rivets, thus reduce the cost and save the time.

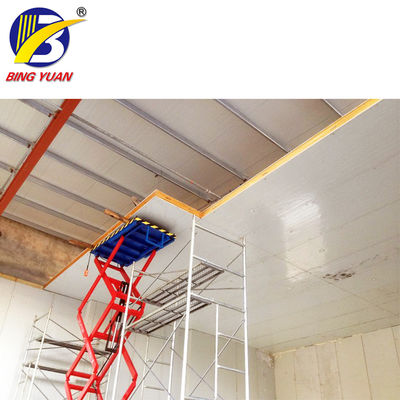

2. Easier and faster installation,can be expended or removed in the future.

3. Perfect heat insulation
High density thermo insulated PUR foam up to 38kg/m³or above for perfect cold-room heat insulation efficiency.

4. Various surface steel choices.
Color steel sheet/Stainless steel sheet/ Embossed aluminum sheet
The standard metal sheets are all smooth. Standard color of steel sheet is white-gray, others are natural metallic.

5. Low flammable
Low flammable PUR foam is used in the cold room panel, with fire retardant B2 grade.

6. Highly hermetical
Silica gel are used on the panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool room or moisture inside the PU insulated panel for the best refrigeration and frozen storage result.

7. Load bearing
The compressive strength is150kpa above, people can walk on the floor panels and allow trolleys can go in and out.

Main Features

1) Energy-saving design, high performance and efficiency, saving electricity in large degree.

2) Remote intelligent management system, automatic high precision digital controller is easy to operate with high efficiency.

3) Imported European compressor, low noise and high reliability, world renowned brand refrigeration accessories guaranteeing longer service life.

4) Adjustable indoor temperature, according to cooled products to adjust the most suitable temperature.

Detailed Information

Cold Room Temperature
1~5 degree	Fresh Keeping Room	Preservation of fresh meat, dairy products, fresh eggs, fruits and vegetables
-10~-20 degree	Cold Storage Room	Mainly used for refrigerating food, and the temperature is kept in the range of -15~18 degree
-22~-25 degree	Low Temperature Room	Mainly used for refrigerating food, and the temperature is kept in the range of -15~18 degree
<-30 degree	Cold Freezer	Mainly used for quick freezing of foods, such as quick frozen dumplings, quick frozen vegetables, etc.

Certifications

CE Certificate Number:

M.2019.206.C0141

Evaporative Condenser

97% Response Rate

Cold Room

98% Response Rate

Air Cooler

99% Response Rate

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Packing & Delivery

Activities

About Yixing ICS

Yixing city Ice Source Refrigeration Equipment Limited is a comprehensive mordern manufacture of all kinds ice making plants, cold room, high-efficiency cold air blower, energy-saving evaporative condenser, aluminum alloy pipe row and various civil constructions, combined with cold room engineering.

ICS is located in Yixing, Wuxi, Jiangsu, CHINA. With over 20 year's successful experience in Chinese market, we focus on the technical innovation to improve the machine quality and strengthen innovation ability. By insisting on the spirit "unity, seeking truth, pioneering and dedication", we commit ourselves to research and development of new technology, striving to create a comprehensive refrigeration enterprise in China.
