CE Certified Commercial Ice Maker, Tube Ice Making Machine, 5T Daily Capacity Automatic Tube Ice Machine

Λεπτομέρειες:

Τόπος καταγωγής:	Jiangsu, Κίνα
Μάρκα:	Yixing ICS
Πιστοποίηση:	ce

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	1 - 1 σύνολα
Τιμή:	$14,000.00
Συσκευασία λεπτομέρειες:	Οι ξύλινες περιπτώσεις στο τυποποιημένο εμπορευματοκιβώτιο ή λιγότερο από το εμπορευματοκιβώτιο load
Δυνατότητα προσφοράς:	1 σύνολο/σύνολα το μήνα

Επικοινωνία

Όλα τα Προϊόντα

Μηχανή κατασκευαστών πάγου νιφάδων (75)

Μηχανή κατασκευαστών κολόνων πάγου (63)

μηχανή κατασκευαστών σωλήνων πάγου (13)

ψυκτική μηχανή πηλού (18)

Τεχνητή μηχανή χιονοπτώσεων (15)

Εξατμιστικό ψυγείο συμπυκνωτών (11)

Πιό δροσερές μονάδες ψύξης (12)

Υπόλοιπος κόσμος ψύξης αργιλίου (5)

Η ηλιακή ενέργεια συσκεύασε το κρύο δωμάτιο (11)

Μονάδες ψύξης κρύας αποθήκευσης (2)

Λεπτομερής Περιγραφή Προϊόντος

Μορφή πάγου:	Σφαίρα	Μεγάλη χωρητικότητα πάγου:	ΚΑΝΕΝΑΣ
Εφαρμόσιμες βιομηχανίες:	Τα ξενοδοχεία, καταστήματα ενδυμάτων, οικοδομικό υλικό ψωνίζουν, καταστήματα επισκευής μηχανημάτων,	Μετά από την υπηρεσία εξουσιοδότησης:	Τηλεοπτική τεχνική υποστήριξη, σε απευθείας σύνδεση υποστήριξη, ανταλλακτικά, συντήρηση τομέων και υ
Θέση τοπικής υπηρεσίας:	ΚΑΝΕΝΑΣ	Θέση αιθουσών εκθέσεως:	ΚΑΝΕΝΑΣ
Όρος:	Νέος	Τάση:	220V/380V
Δύναμη:	4.5kw	Διάσταση (lwh):	13209501800 χιλ.
Βάρος:	4500kg	Εξουσιοδότηση:	1 έτος
Υπηρεσία μεταπωλήσεων παρεχόμενη:	Ελεύθερα ανταλλακτικά, εγκατάσταση τομέων, που αναθέτουν και που εκπαιδεύουν, συντήρηση τομέων και υ	Βασικά σημεία πώλησης:	Αυτόματος
Έκθεση δοκιμής μηχανημάτων:	Παρεχόμενος	Τηλεοπτική εξερχόμενος-επιθεώρηση:	Παρεχόμενος
Τύπος μάρκετινγκ:	Νέο προϊόν 2020	Εξουσιοδότηση των τμημάτων πυρήνων:	1 έτος
Τμήματα πυρήνων:	Δοχείο πίεσης, μηχανή, άλλη, συμπεριφορά, εργαλείο, αντλία, κιβώτιο ταχυτήτων, μηχανή, PLC	Όνομα προϊόντων:	Ψυκτική μηχανή σωλήνων ολοκληρωμένων κυκλωμάτων Yixing
Τύπος:	αυτόματος κατασκευαστής πάγου	Υλικό:	ανοξείδωτο 304
Δροσίζοντας τρόπος:	Υδρόψυξη/αερόψυξη	Συμπιεστής:	Bitzer
Ψυκτική ουσία:	R404a/R22a	Εσωτερικό υλικό εξατμιστήρων:	Χάλυβας χαλκού/άνθρακα/ανοξείδωτο
Έξοδος πάγου:	22mm, 28mm 35mm	Σύστημα ελέγχου:	Αυτόματο σύστημα ελέγχου
Εφαρμογή:	Ποτό-ψύξη	Λιμένας:	ΣΑΓΚΆΗ

Product Description

Product Name	Tube Ice Machine
Cooling Type	Water CoolingAir Cooling
Refrigerant	R22/R404A
Package	standard export packing
Input Power	380V/3P/50HZ
Ambient temp	30℃
Water inlet temp	25℃
condensing temp	42℃
Compressor running power	4.25kw
Installation power	6kw
Dimension	13209501800mm
Net weight	650kg

Product performance description

Tube ice machine is one kind of ice making machine. It is named for the regular cylindrical hollow Tube shape of the ice it produces. The name of the produced ice cube is Tube ice. The contact area is the smallest of the existing ice types in the market with the best melting resistance. It is suitable for drinks, decoration, food ice storage and so on, so it is mostly edible ice.
The tube ice produced by tube ice machine is a kind of ice block with irregular length and hollow tube. Its inner hole is 5mm~15mm, and the length is 25mm~42mm. There are various sizes to choose from. The outer diameter of the ice is as follows: 22, 29, 32, 35 mm, etc. It is suitable for daily consumption, vegetable preservation and fishery products preservation.

Features

Pure Ice	Using Pre-PurifyTM water purification technology to filter the incoming water, the ice cubes are crystal clear.
Perfect Design	All the equipment adopts CAD-3D simulation assembly, which makes the arrangement of equipment parts and accessories and the direction of pipes more reasonable, compact structure and not crowded, and more humanized operation and maintenance.
Safety and Hygiene	Evaporator materials are made of stainless steel 304 and other materials, reaching the international health standards.
Efficient Performance	The evaporator adopts special processing technology, which makes the evaporator have better thermal conductivity.
Energy Saving And Water Saving	Each compressor condensing unit is equipped with heat exchange of return pipe and liquid supply pipe, control of evaporation temperature and condensation temperature, superheat of return gas and oil return, so as to ensure stable operation of compressor unit under safe working conditions.
High Quality Accessories	More than 80% of the refrigeration equipment accessories produced by Ice Source use well known brands at home and abroad. For example, Bitzer is used for the compressor. Hansen, Danfoss, Emerson and other world famous brands are used as refrigeration accessories.
Customized	The refrigeration equipment produced by Ice Source can operate normally under the working conditions of -20~+50℃ and water inlet temperature of +0.5~+45℃. The company can not only provide all kinds of standard refrigeration equipment for you but also customized the refrigeration system under special working conditions according to the actual needs.
Stable and Reliable	Perfect design, reduce the equipment internal unnecessary transmission parts, so that the equipment more simple and reliable. The unit is generally equipped with low water level, water flow, full ice, high pressure compressor, low pressure of compressor, oil pressure of compressor, et., so that the equipment can operate stably, reliably, and safely, and can operate continuously for more than 3000 hours without fault.
Standardization	Most of the products have been standardized, so that the production quality and processing technology are more mature and the quality is more guaranteed.
Fully Automatic	PLC computer module automatically controls ice making process at a glance.

Detailed Images

Structure

The structure of tube ice machine mainly includes evaporator, condenser, water storage tank, compressor and liquid storage tank. Among them the evaporator structure is the most complex, the accuracy requirement is the highest and the manufacturing difficulty is the biggest.

Classification

Tube ice machine can be divided into small tube ice machine and large tube ice machine according to the daily output ( According to the international standard of working conditions: dry bulb temperature of 33°C, inlet water temperature of 20°C ) . The daily ice production of small tube ice machines ranges from 1 ton to 8 tons, and most of them are single structure. The daily ice production of large tube ice machine is from 10 tons to 60 tons, most of which are compound structure and need to be equipped with cooling tower.

Ice making process

Ice making ---Ice collecting/delivering---
Ice Packing and weighing---
Ice storage

Ice shape choice

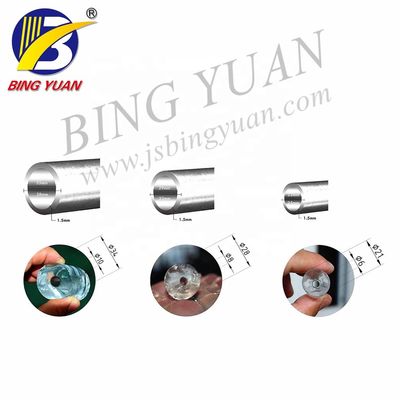

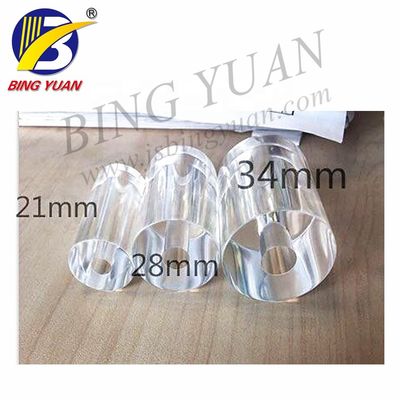

Choice 1-S: φ22*H35mm, inner hole 5mm,12g. Choice 2-M: φ28*H40mm, inner hole 8mm, 20g. Choice 3-L: φ35*H50mm, inner hole 12mm, 42g

Product Usages

Daily consumption

Vegetable preservation

Fishery products preservation

Drinks Cooling

Medical Industry

Chemical Industry

Pre-sale service

* Inquiry and consulting support
* Sample testing support
* View our Factory

After-sale service

* Training how to install the machine, training how to use the machine
* Engineers available to service machinery overseas

Company Introduction

Yixing city Ice Source Refrigeration Equipment Limited is a comprehensive modern manufacture of all kinds ice making plants, cold room, high-efficiency cold air blower, energy-saving evaporative condenser, aluminum alloy pipe row and various civil constructions, combined with cold room engineering.

ICS is located in Yixing, Wuxi, Jiangsu, CHINA. With over 20 year's successful experience in Chinese market, we focus on the technical innovation to improve the machine quality and strengthen innovation ability. By insisting on the spirit "unity, seeking truth, pioneering and dedication", we commit ourselves to research and development of new technology, striving to create a comprehensive refrigeration enterprise in China.
